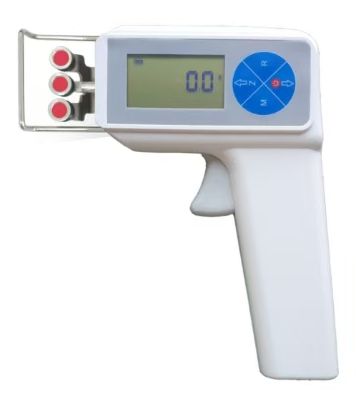

Tension Meter — Yarn, Fiber, Metal Thread Tension Measurement
High precision with 1% full scale accuracy. Ideal for textile and fiber production quality control.
Models & Specifications
| Model | Range | Measuring Head | Calibration |
|---|---|---|---|
| YS-50 | 0.3 – 50.0 cN | 43 mm | PA: φ0.12 mm |
| YS-100 | 1.0 – 100.0 cN | 43 mm | PA: φ0.12 mm |
| YS-200 | 1 – 200 cN | 43 mm | PA: φ0.20 mm |
Technical Specifications
- Accuracy: 1% full scale (FS)
- Display update: 0.5 seconds
- Units: g, cN (switchable)
- Max linear speed: 900 m/min
- Storable values: Max, min, average
- Display: Dot matrix LCD
- Dimensions: 150 × 100 × 30 mm
- Power: Li-ion rechargeable, ~30 hours operation
- Operating: 10–45°C, ≤90% RH
